EuroZone Gas Imports and Exports

EuroZone Gas Imports and Exports

Import and Procedural Functions

import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
from geopy.distance import distance
import re
import matplotlib.pyplot as plt
from IPython.core.display import HTML
#import IPython.core.display as display

def hugo_safe_render(styler):
    """ Removes spacing from HTML output of df.style to prevent rendering issues in Hugo. """

    raw_html = styler.to_html()
    clean_html = ' '.join(raw_html.split())

    return HTML(clean_html)


def magnify():
    return [dict(selector="th",
                 props=[("font-size", "4pt")]),
            dict(selector="td",
                 props=[('padding', "0em 0em")]),
            dict(selector="th:hover",
                 props=[("font-size", "12pt")]),
            dict(selector="tr:hover td:hover",
                 props=[('max-width', '200px'),
                        ('font-size', '12pt')])
]

Query Strategy

Imports

TO many to list... I'll ad them as I go below

Glossary

Units

Data should be reported in Terajoules (TJ) on the basis of Gross calorific values (GCV) and in million cubic metres (at 15oC and 760 mm Hg, i.e. Standard Conditions)

Source

https://ec.europa.eu/eurostat/documents/38154/10015688/Gas-Instructions-2018.pdf/2c78ed79-88fe-47ce-91f6-6069081755fb

Data

Converting all tsv to csv documents

Building tsv file list

import glob

# assign directory
directory = '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng'


tsv_list = [x for x in glob.iglob(f'{directory}/*.tsv')]

print(tsv_list)

['/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/imports_montth.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/ng_imports.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/ng_exports.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/supply_transformation_consumption.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/non_house_consumption.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/ng_stocks.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/gas_prices.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/house_hold_consumption.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/exports_month.tsv', '/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/transport_costs.tsv']

Converting to CSV

The columns of this data are ugly. Some are in csv format and others are in tab.

I'll convert the entire document to csv to simplify our work.

for tsv_file in tsv_list:
  filepath = tsv_file
  outfile = filepath.replace('tsv','csv')

  # reading given tsv file
  with open(filepath, 'r') as myfile:
    with open(outfile, 'w') as csv_file:
      for line in myfile:

        # Replace every tab with comma
        fileContent = re.sub("\t", ",", line)

        # Writing into csv file
        csv_file.write(fileContent)

  # output
  print(outfile)

/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/imports_montth.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/ng_imports.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/ng_exports.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/supply_transformation_consumption.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/non_house_consumption.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/ng_stocks.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/gas_prices.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/house_hold_consumption.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/exports_month.csv
/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/transport_costs.csv

Natural Gas Imports Data

## Importing our DataFrames

filepath = "/Users/jnapolitano/Projects/data/EuropeanEnergyData/ng/ng_imports.csv"


## Reading the CSV Columns

ng_imports_df = pd.read_csv(filepath, skipinitialspace=True, low_memory=False)

# Repacing NA's
ng_imports_df = ng_imports_df.replace(to_replace=': ', value=0)

#coverting to float
ng_imports_df['1990 '] = ng_imports_df['1990 '].astype(float)
ng_imports_df['1991 '] = ng_imports_df['1991 '].astype(float)
ng_imports_df['1992 '] = ng_imports_df['1992 '].astype(float)
ng_imports_df['1993 '] = ng_imports_df['1993 '].astype(float)
ng_imports_df['1994 '] = ng_imports_df['1994 '].astype(float)
ng_imports_df['1995 '] = ng_imports_df['1995 '].astype(float)
ng_imports_df['1996 '] = ng_imports_df['1996 '].astype(float)
ng_imports_df['1997 '] = ng_imports_df['1997 '].astype(float)
ng_imports_df['1998 '] = ng_imports_df['1998 '].astype(float)
ng_imports_df['1999 '] = ng_imports_df['1999 '].astype(float)
ng_imports_df['2000 '] = ng_imports_df['2000 '].astype(float)
ng_imports_df['2001 '] = ng_imports_df['2001 '].astype(float)
ng_imports_df['2002 '] = ng_imports_df['2002 '].astype(float)
ng_imports_df['2003 '] = ng_imports_df['2003 '].astype(float)
ng_imports_df['2004 '] = ng_imports_df['2004 '].astype(float)
ng_imports_df['2005 '] = ng_imports_df['2005 '].astype(float)
ng_imports_df['2006 '] = ng_imports_df['2006 '].astype(float)
ng_imports_df['2007 '] = ng_imports_df['2007 '].astype(float)
ng_imports_df['2008 '] = ng_imports_df['2008 '].astype(float)
ng_imports_df['2009 '] = ng_imports_df['2009 '].astype(float)
ng_imports_df['2010 '] = ng_imports_df['2010 '].astype(float)
ng_imports_df['2011 '] = ng_imports_df['2011 '].astype(float)
ng_imports_df['2012 '] = ng_imports_df['2012 '].astype(float)
ng_imports_df['2013 '] = ng_imports_df['2013 '].astype(float)
ng_imports_df['2014 '] = ng_imports_df['2014 '].astype(float)
ng_imports_df['2015 '] = ng_imports_df['2015 '].astype(float)
ng_imports_df['2016 '] = ng_imports_df['2016 '].astype(float)
ng_imports_df['2017 '] = ng_imports_df['2017 '].astype(float)
ng_imports_df['2018 '] = ng_imports_df['2018 '].astype(float)
ng_imports_df['2019 '] = ng_imports_df['2019 '].astype(float)
ng_imports_df['2020 '] = ng_imports_df['2020 '].astype(float)

ng_imports_df.keys()

## This data set has spaces at the end of the years... Be aware of this when trying to findd keys

Index(['siec', 'partner', 'unit', 'geo', '2020 ', '2019 ', '2018 ', '2017 ',
       '2016 ', '2015 ', '2014 ', '2013 ', '2012 ', '2011 ', '2010 ', '2009 ',
       '2008 ', '2007 ', '2006 ', '2005 ', '2004 ', '2003 ', '2002 ', '2001 ',
       '2000 ', '1999 ', '1998 ', '1997 ', '1996 ', '1995 ', '1994 ', '1993 ',
       '1992 ', '1991 ', '1990 '],
      dtype='object')

Natural Gas Imports Descriptive Statistics

#ng_imports_df.describe()
ng_imports_df.describe().style.set_caption('Natural Gas Imports Descriptive Statistics').set_sticky(axis=0).set_properties(**{'max-width': '80px', 'font-size': '1pt'}).set_caption("Hover to magnify").format(precision=2).set_table_styles(magnify())
#bigdf.style.set_sticky(axis="index")
#.describe().style
#create table

#bigdf.style
#    .set_properties(**{'max-width': '80px', 'font-size': '1pt'})\
#    .set_caption("Hover to magnify")\
#    .format(precision=2)\
##    .set_table_styles(magnify())

#define figure and axes
#ng_imports_df.style.set_caption("testing")

plt.show()

Replace 0's with Numpy NAN

ng_imports_df.replace(0, np.nan, inplace=True)

Remove NAN Rows for the dataframe

I remove rows where all of the rows are 0 to reduce the size of the dataframe for analysis.

## There are 30 years of data in the set. If there are 30 columns per row with nan values that row will be dropped.
ng_imports_df.dropna(thresh=30, axis=0, inplace=True)
#df.dropna(thresh=2)

ng_imports_df.describe().style.set_caption('Natural Gas Imports Descriptive Statistics').set_sticky(axis=0).pipe(hugo_safe_render)

Grouping Totals by Geo/State

geo_imports_df = ng_imports_df.groupby(['geo', 'partner','unit']).sum()

geo_imports_df.head().style.set_caption('Grouped By State, Partern and Unit').pipe(hugo_safe_render)

With the tables compiled we can now look more in depthly at the imports of natural gas in europe.

State Code Reference Sheet Source

https://ec.europa.eu/eurostat/statistics-explained/index.php?title=Glossary:Country_codes

German Totals

german_totals_df = geo_imports_df.query('geo=="DE"')
#geo_imports_df.loc[pd.IndexSlice[:,'DE'],:]

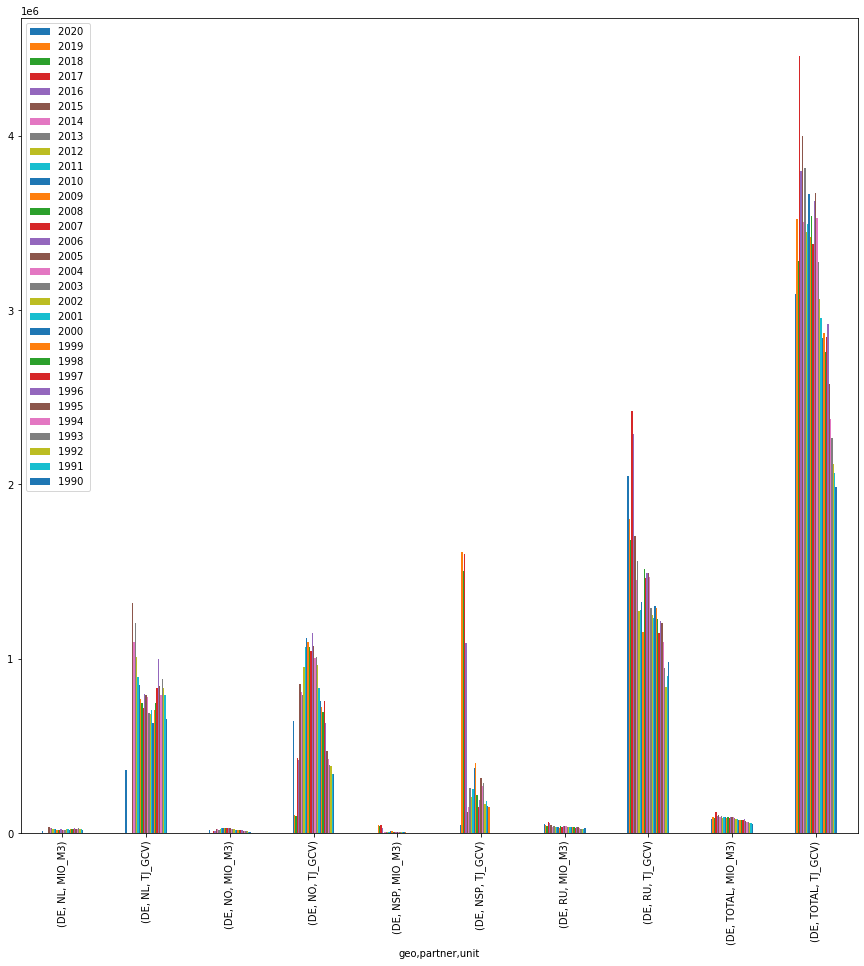

German Totals Bar Chart

german_totals_df.plot(legend=True, figsize=(15,15), kind = 'bar')

<AxesSubplot:xlabel='geo,partner,unit'>

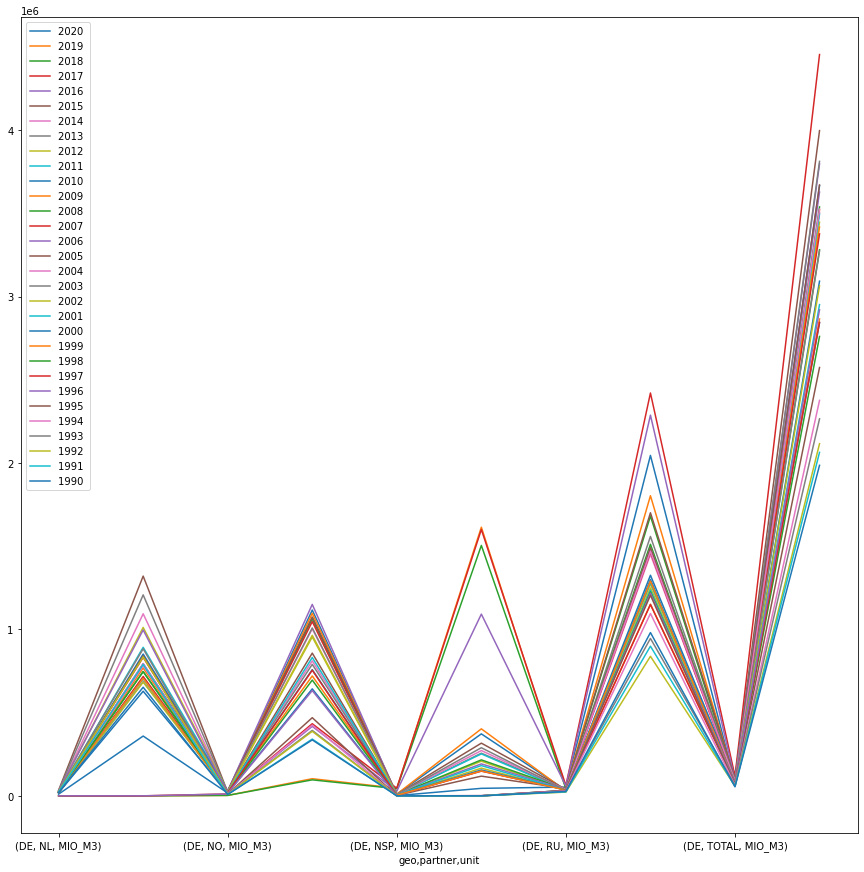

German Totals Line

Only including long term partners

german_totals_df.plot(legend=True, figsize=(15,15), kind = 'line')

<AxesSubplot:xlabel='geo,partner,unit'>

French Totals

french_totals_df=geo_imports_df.query('geo=="FR"')
french_totals_df.style.set_caption('French Totals Data').pipe(hugo_safe_render)
#geo_imports_df.loc[pd.IndexSlice[:,'DE'],:]

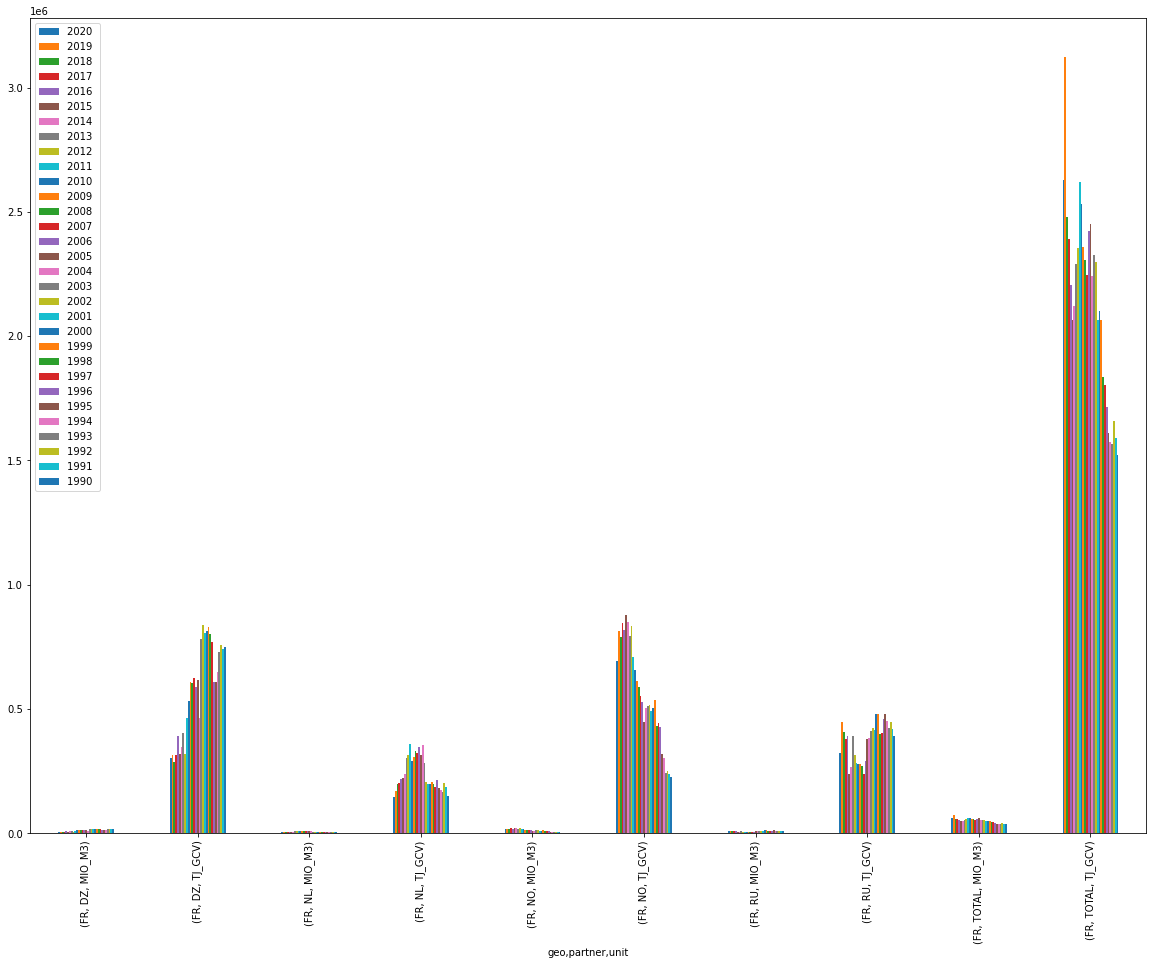

French Totals Bar Chart

french_totals_df.plot(legend=True, figsize=(20,15), kind = 'bar')

<AxesSubplot:xlabel='geo,partner,unit'>

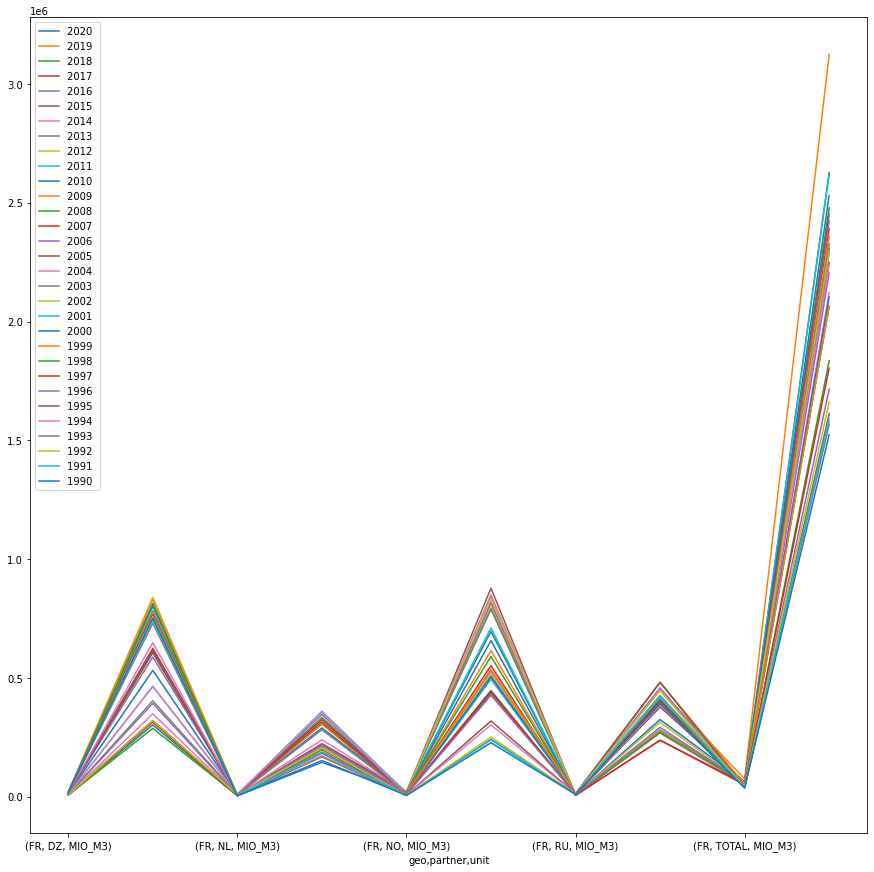

French Totals Line

Only long term partners

french_totals_df.plot(legend=True, figsize=(15,15), kind = 'line')

<AxesSubplot:xlabel='geo,partner,unit'>

Max Importers Per Year

max_imports_df = ng_imports_df.groupby(['geo', 'partner','unit']).max()

French Maximums

french_max_df=max_imports_df.query('geo=="FR"')
french_max_df.style.set_caption('French Maximums').pipe(hugo_safe_render)

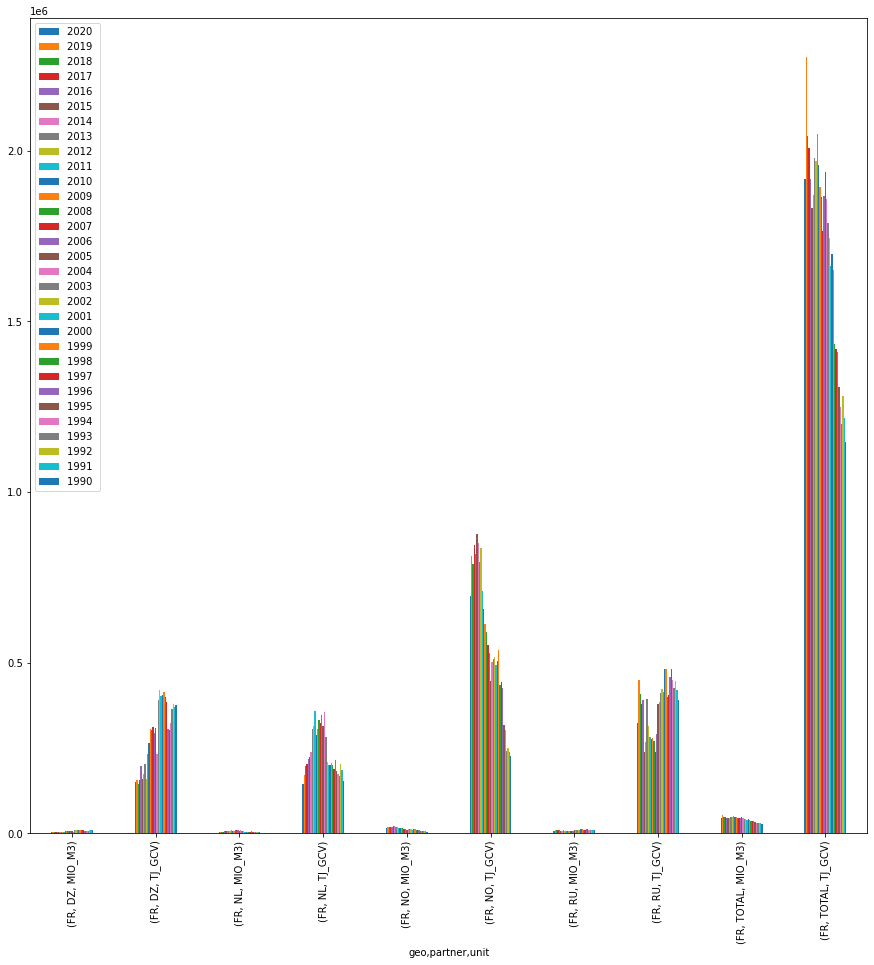

French Max Bar Chart

french_max_df.plot(legend=True, figsize=(15,15),kind = 'bar')

<AxesSubplot:xlabel='geo,partner,unit'>

French Max Line

** Only long term partners

french_max_df.plot(legend=True, figsize=(15,15))

<AxesSubplot:xlabel='geo,partner,unit'>

German Maximums

german_max_df = max_imports_df.query('geo=="DE"')
german_max_df.style.set_caption('German Maximums').pipe(hugo_safe_render)

German Max Bar Chart

german_max_df.plot(legend=True, figsize=(15,15),kind = 'bar')

<AxesSubplot:xlabel='geo,partner,unit'>

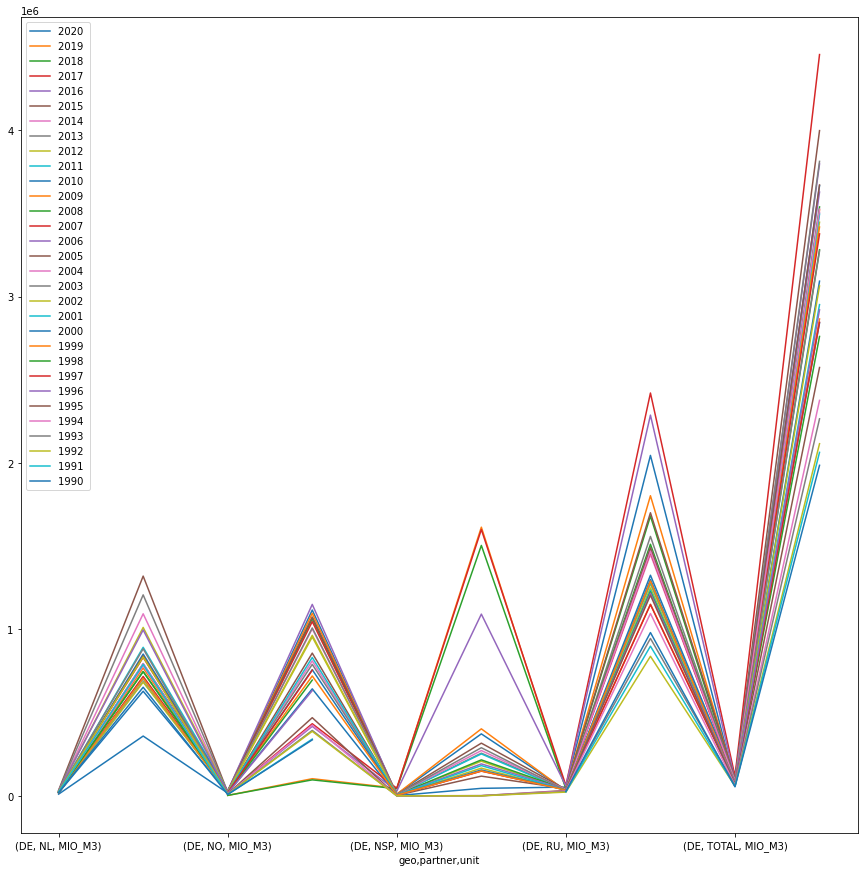

German Max Line

** Only long term partners

german_max_df.plot(legend=True, figsize=(15,15))

<AxesSubplot:xlabel='geo,partner,unit'>

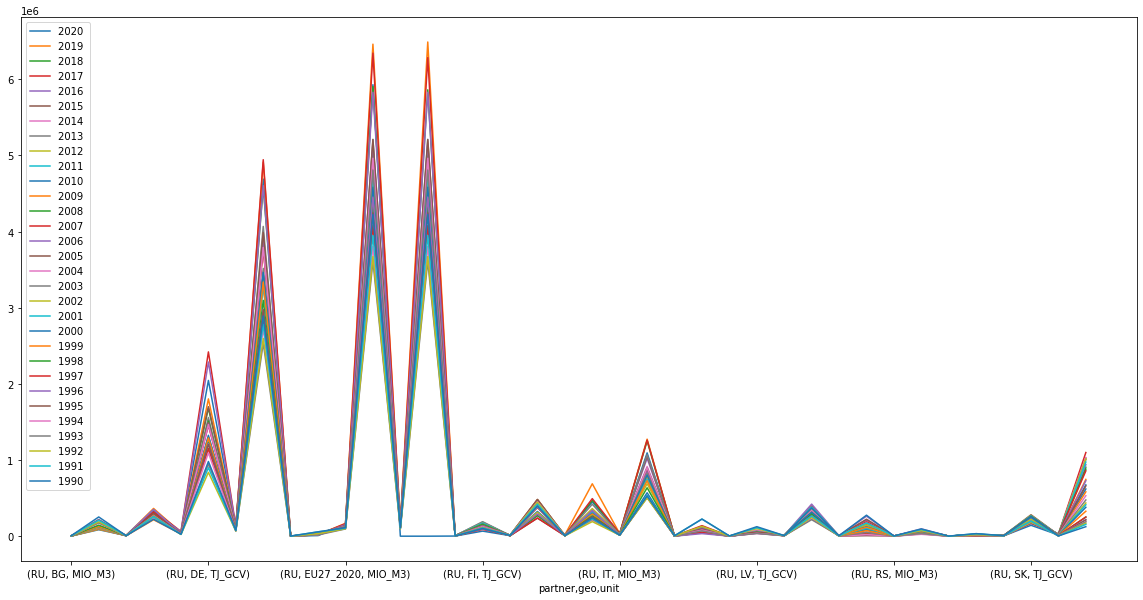

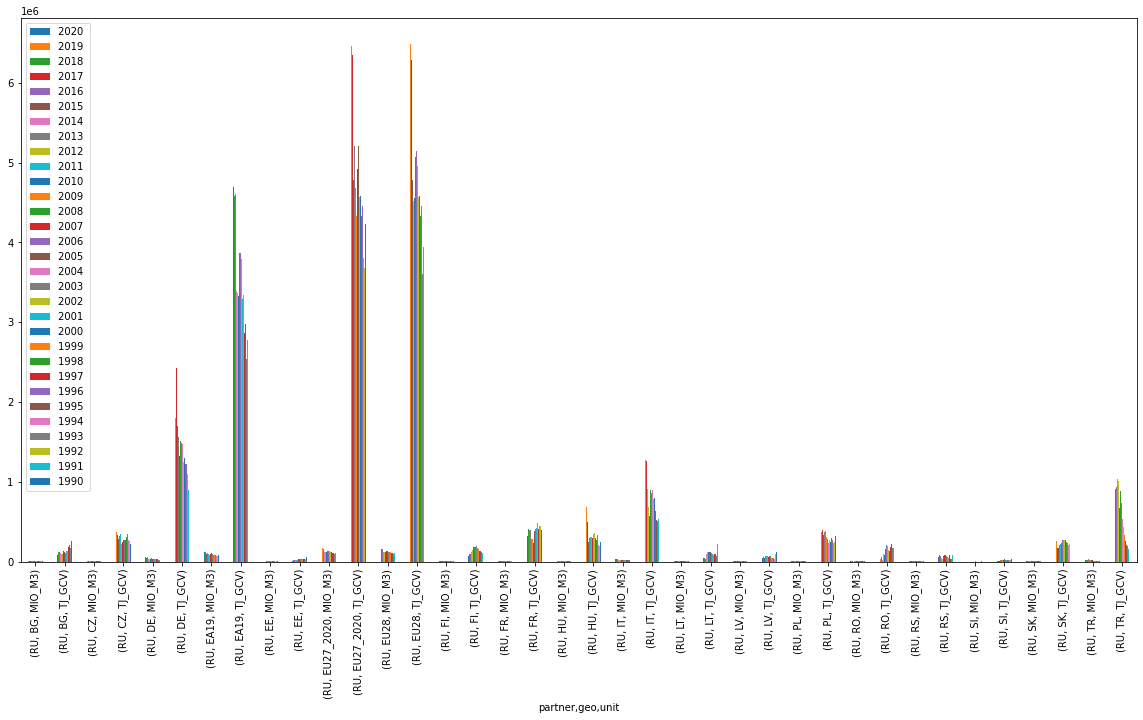

Gas Partners

partners_sum_df = ng_imports_df.groupby(['partner', 'geo','unit']).sum()

partners_sum_df.style.set_caption('Partner_Totals').pipe(hugo_safe_render)
